QUALIFIED BY CFM UNDER LICENSING AGREEMENT

LEAP-1C ENGINE STAND

956A7626G01

LEAP-1C ENGINE STAND SPECIFICATIONS

WEIGHT (without engine)
3054 kg [6,731 lbs]
DIMENSIONS (without engine)
4625 mm X 3000 mm X 1741 mm [182 in X 118 in X 68 in]
USAGE
Transport, install and remove LEAP-1C engine
USED WITH
Set, lifting brackets turbine rear end (PN 956A7314) / Adapter plate and spherical joint (PN 956A6000) / Storage cover QEC (PN 956A7684)
BOOTSTRAP POINTS
On engine stand cradle

LIFTING SYSTEM
Yes | 1 adjustable rear arm – Mechanical screw jack – To escape precooler for worst aircraft configuration
CASTER WHEEL TYPE
Swiveling caster; double wheel with 2 wheel pins
CASTER WHEEL POSITIONS
2 (Ground clearance / Storage position)
ISOLATION
11 shock absorbing mounts between cradle and trolley – To protect engine from shock, vibration and acceleration during transportation

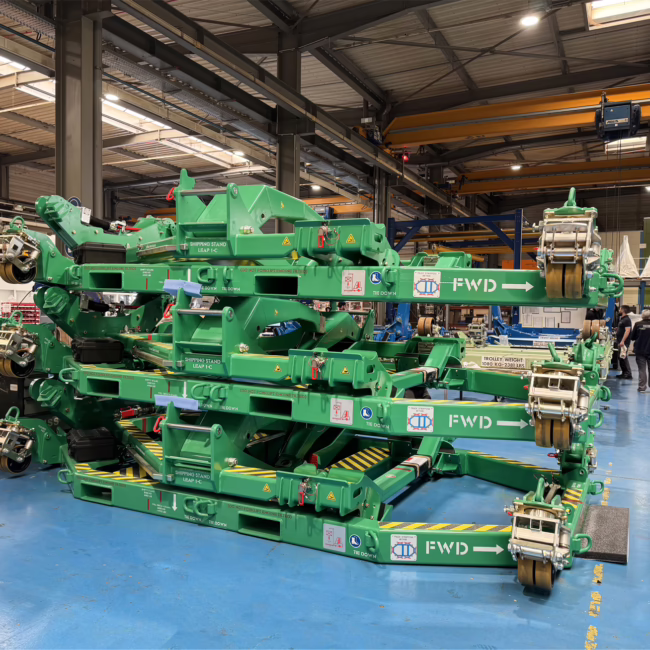

STACKABLE
Yes (Quantity: 3)
TOWING CAPABILITY
Forward and Aft
