QUALIFIED BY CFM UNDER LICENSING AGREEMENT

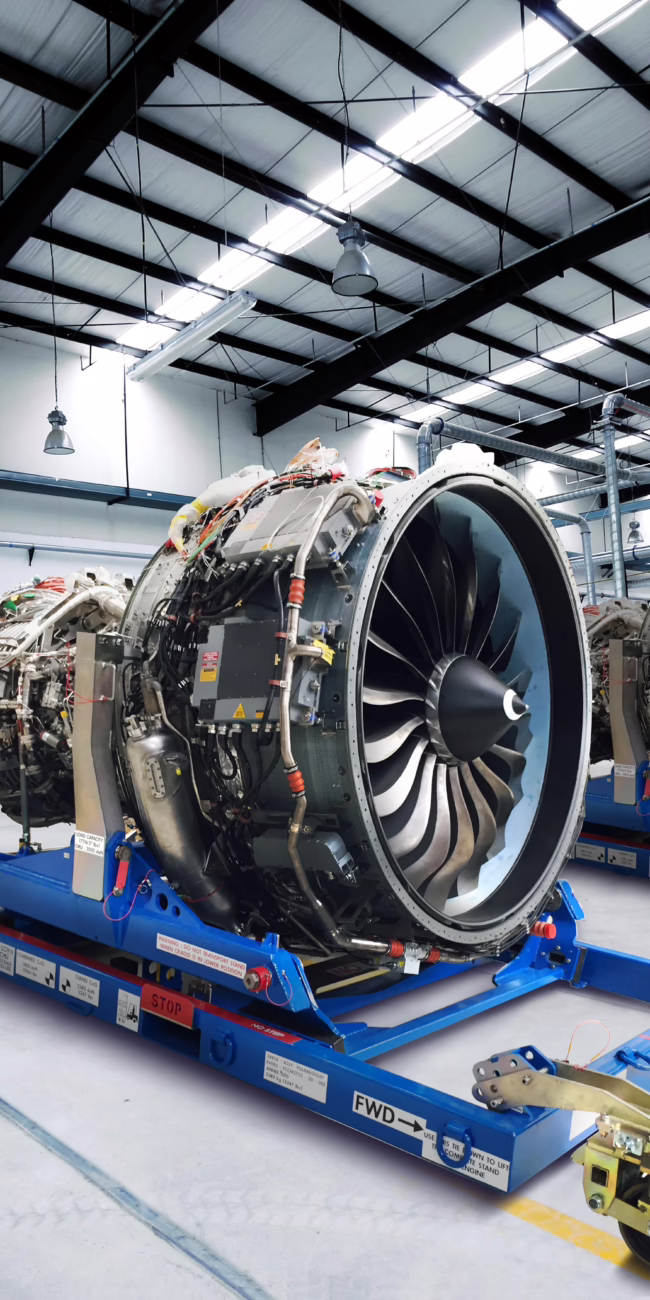

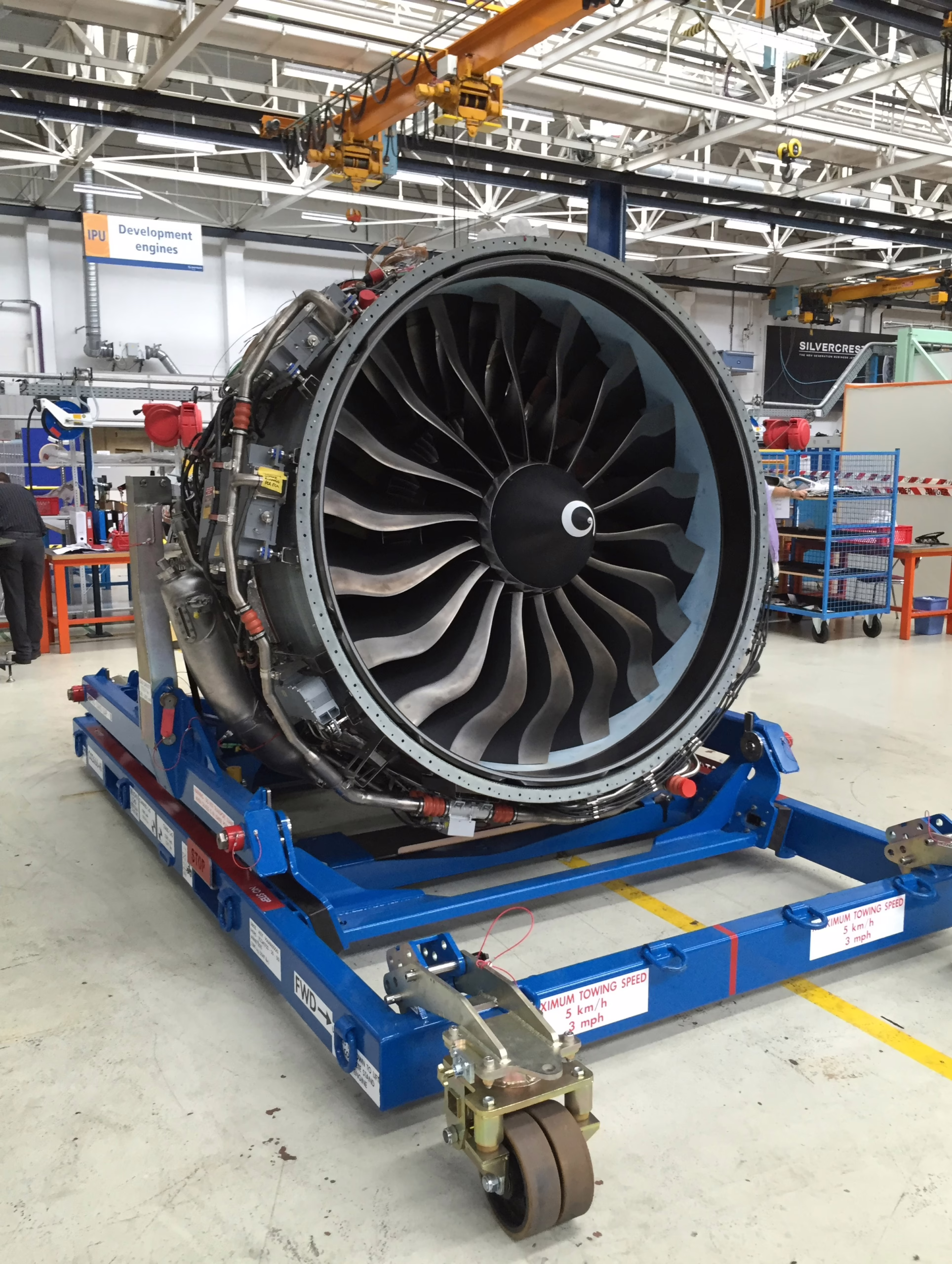

LEAP-1B ENGINE STAND

Engine transportation stand – 956A8600G03

LEAP-1B ENGINE STAND

LEAP-1B ENGINE STAND

LEAP-1B ENGINE STAND SPECIFICATIONS

LEAP-1B ENGINE STAND SPECIFICATIONS

  • WEIGHT

    2380 Kg [5,247 lbs]

  • DIMENSIONS

    4775 mm X 2489 mm X 1549 mm [188in X 98in X 61in]

  • USAGE

    Transport, install and remove LEAP-1B engine

  • USED WITH

    Set, lifting brackets turbine center frame (PN 956A8667G04) / Adapter for module (PN 956A8018G02) / Storage cover QEC (PN 956A8676G02)

  • INTERFACES WITH

    Fan frame

  • BOOTSTRAP POINTS

    On engine

  • LIFTING SYSTEM

    Yes | Hydraulic (4 single acting actuators, each assembled with a stabilizer actuator foot, gaz actuator body and rods) | Vertical positions: 2 – To install and remove from wing

  • CASTER WHEEL TYPE

    Swiveling caster; double wheel with 2 wheel pins

  • CASTER WHEEL POSITIONS

    4 (Ground clearance 50mm (1.97in) / Ground clearance 80mm (3.15in) / Empty storage position / Storage)

  • ISOLATION

    8 shock absorbing mounts between cradle and trolley – To protect engine from shock, vibration and acceleration during transportation

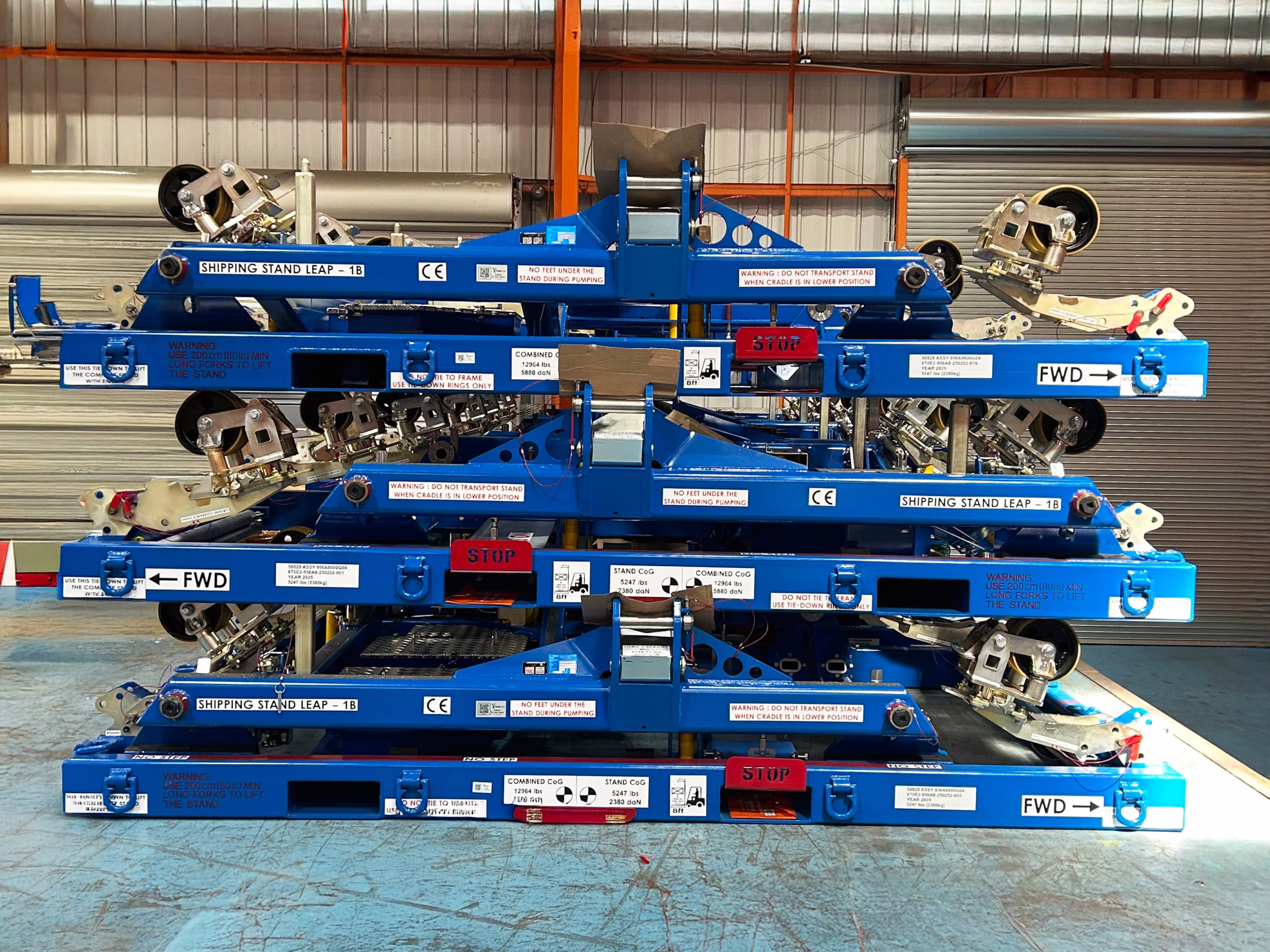

  • STACKABLE

    Yes (Quantity: 3)

  • TOWING CAPABILITY

    Forward & AFT

LEAP-1B ENGINE STAND STOCK & LEASE

LEAP-1B ENGINE STAND STOCK & LEASE

LOCATIONS STATUS REQUEST A QUOTE
Miami, USA
4 in stock
Cincinnati, USA
Assembly / In production
Toulouse, FRANCE
Assembly / In production
Dubai, MEA
3 in stock
Singapore, ASIA
Assembly / In production
Zhuhai, CHINA
Assembly / In production
