QUALIFICATION STATUS: PROTOTYPE SERIAL DELIVERY FROM JUNE 2020

GE9X ENGINE STAND

8C2604P04

GE9X ENGINE STAND

GE9X ENGINE STAND

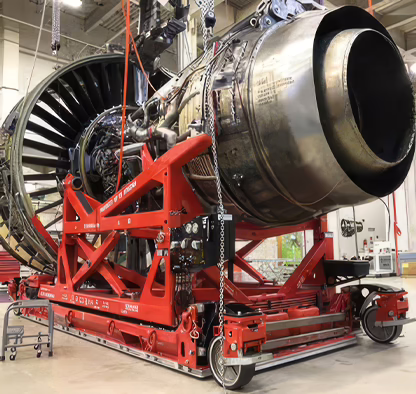

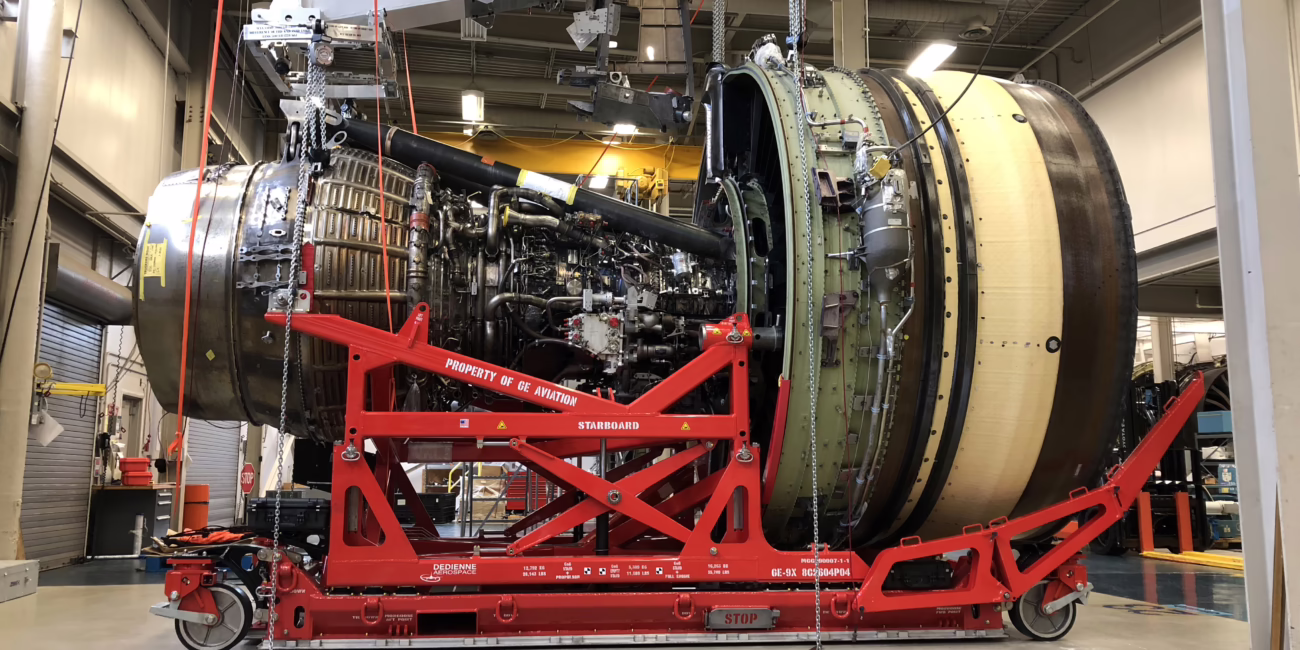

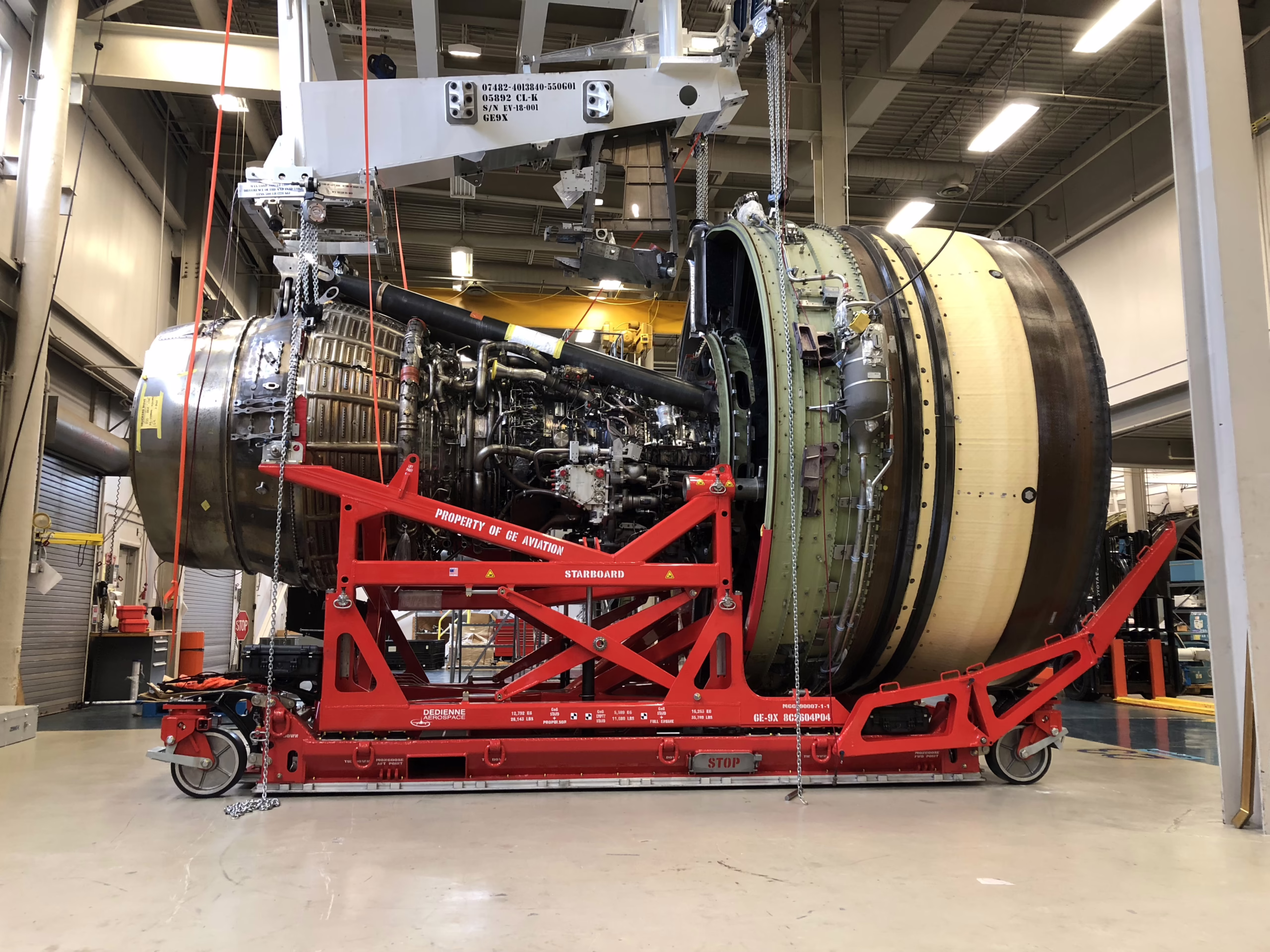

Dedienne Aerospace GE9X engine stand

GE9X ENGINE STAND SPECIFICATIONS

GE9X ENGINE STAND SPECIFICATIONS

  • WEIGHT

    Empty stand: 5300 kg [11,700 lbs] | Stand + propulsor: 12800 kg [28,212 lbs] | Full engine: 15400 kg [33,942 lbs]

  • DIMENSIONS

    5750 mm X 2590 mm X 1480 mm [227 in X 102 in X 62 in]

  • USAGE

    Transport, install and remove GE9X engine

  • USED WITH

    Dolly separation fan (8C2600P01) / Fixture, lift (8C2625G01) / Brackets, support - fan hub frame (8C2601G02) / Bracket set, support - TRF (8C2626G01) / Bracket set, ground handling - lower AFC (8C2661G01) / Cover, protective - Stage 1 fan disk (8C2611G01) / Cover, protective - propulsory (8C2606P01)

  • INTERFACES WITH

    AFC mounts / TRF mounts / FHF mounts

  • BOOTSTRAP POINTS

    On engine stand cradle

  • LIFTING SYSTEM

    Hydraulic / Scissor lift | Vertical positions: 3

  • CASTER WHEEL TYPE

    Foldable casters capable to lift the stand fully loaded (wheels: 16” diameter)

  • CASTER WHEEL POSITIONS

    3 (High position: 4,5" ground clearance / Low position: 1" ground clearance, allow to pass under the 777 engine pylon in rare conditions) / Folded position: pallet grounded)

  • ISOLATION

    16 shock absorbing mounts between cradle and trolley – To protect engine from shock, vibration and acceleration during transportation

  • STACKABLE

    No

  • TOWING CAPABILITY

    Forward (only without inlet) and Aft
