QUALIFIED BY ROLLS-ROYCE UNDER LICENSING AGREEMENT

TRENT XWB - BASIC ENGINE STAND

RRT102553 / RRT102554

Engine Stands > TRENT XWB Basic Stand

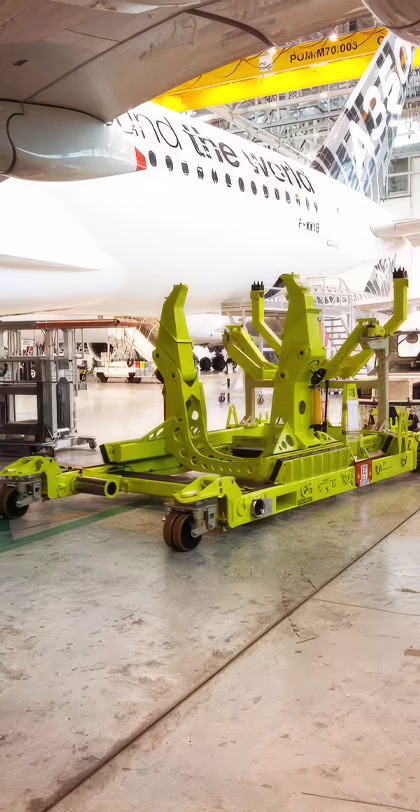

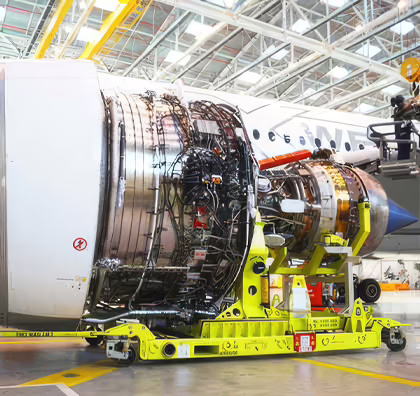

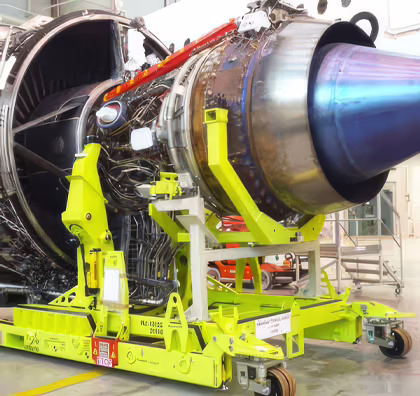

TRENT XWB – BASIC ENGINE STAND

TRENT XWB – BASIC ENGINE STAND SPECIFICATIONS

WEIGHT
RRT102553 > 3335 kg [7,352 lbs] || RRT102554 > 3740 kg [8,246 lbs]
DIMENSIONS
Castors stowed: 5190 mm X 2500 mm X 2427mm [204.3 in X 98.4 in X 95.5 in] | Castors deployed: 5080 mm X 2500 mm X 2525 mm [200 in X 98.4 in X 99.4 in]
USAGE
Transport, install and remove TRENT XWB engine
USED WITH
RRT102553 > Towing kit (RRT089158) / Castor kit (RRT089143) / Lift adaptors (RRT089154) / Basic stand (RRT089139) / Master mover interface (RRT089163) / Rear supports (RRT089161) || Bootstrap yoke (RRT061134-3) / Towing kit (RRT089158) / Castor kit (RRT089143) / Lift adaptors (RRT089154) / Basic stand (RRT089139) / Master mover interface (RRT089163) / Yoke support frame (RRT089162)
BOOTSTRAP POINTS
On engine fan case and yoke (RRT061134)

LIFTING SYSTEM
Yes (4 hydraulic cylinders) – To fold caster
CASTER WHEEL TYPE
Swiveling caster; double wheel with 2 wheel pins
CASTER WHEEL POSITIONS
2 (Ground position / Engine position)
ISOLATION
18 shock absorbing mounts between cradle and trolley – To protect engine from shock, vibration and acceleration during transportation
STACKABLE
No
TOWING CAPABILITY
Forward and Aft / Side
