QUALIFIED BY CFM UNDER LICENSING AGREEMENT

LEAP-1A ENGINE STAND

956A7644G03

Engine Stands > LEAP-1A

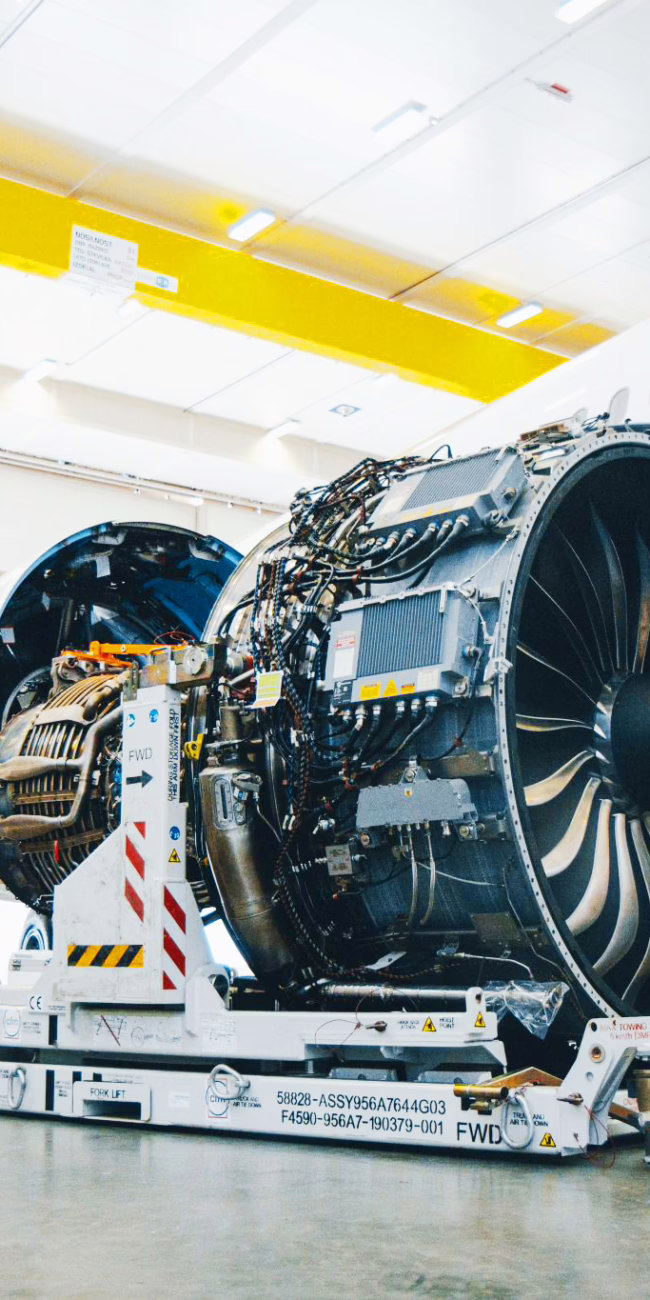

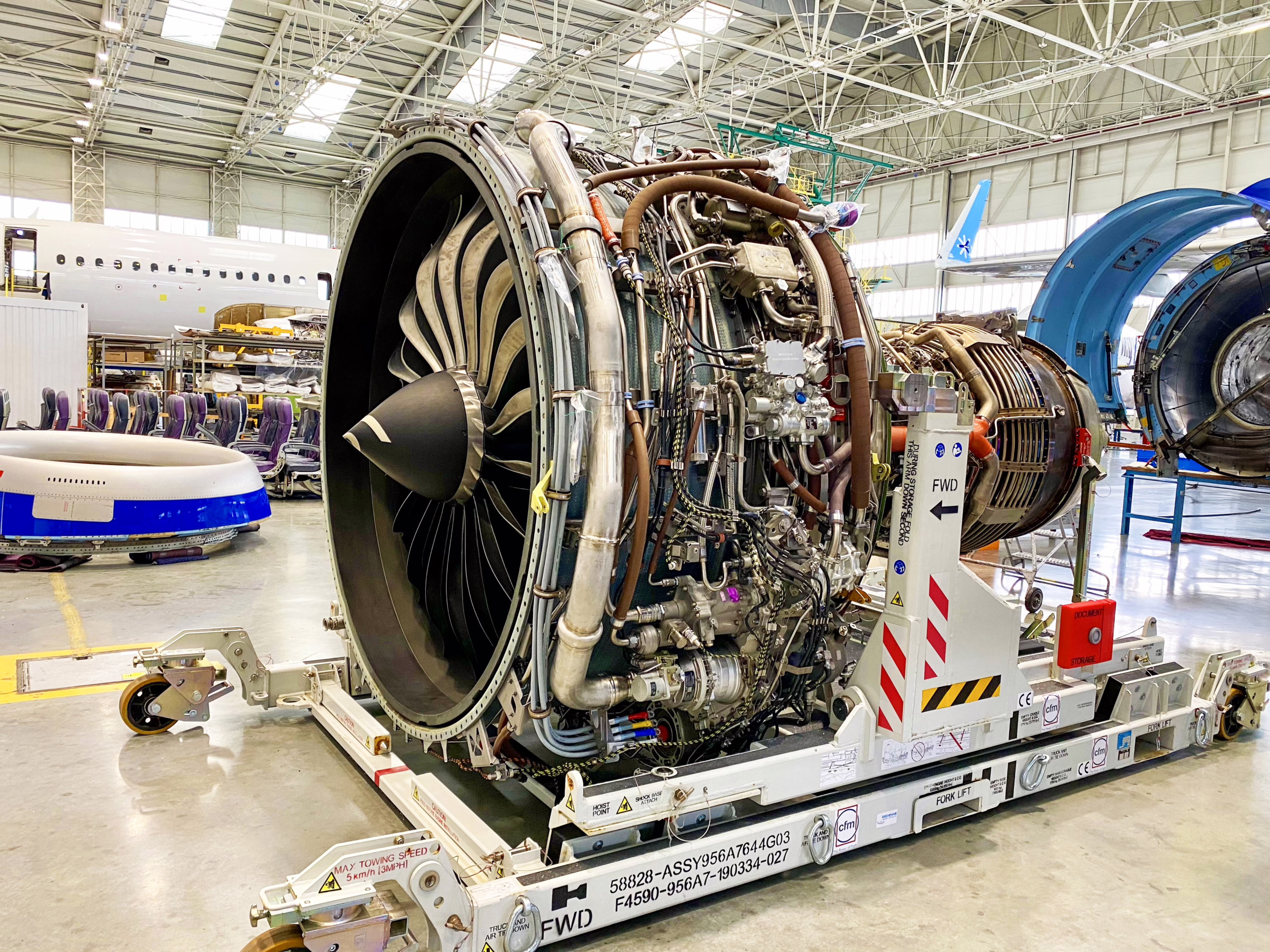

LEAP-1A ENGINE STAND

LEAP-1A ENGINE STAND

LEAP-1A ENGINE STAND SPECIFICATIONS

LEAP-1A ENGINE STAND SPECIFICATIONS

WEIGHT
2853 kg [6,250 lbs]
DIMENSIONS
4775 mm x 2591 mm x 1727 mm [188 in X 102 in X 68 in]
USAGE
Transport, install and remove LEAP-1A engine
USED WITH
Set, lifting brackets turbine rear end (PN 956A7314G02) / Adapter, plate and spherical joint (PN 956A6046G02) / Storage cover QEC (PN 956A7683G02)
INTERFACES WITH
Fan frame / Turbine rear frame
BOOTSTRAP POINTS
On engine stand cradle

LIFTING SYSTEM
No | Vertical positions: 1
CASTER WHEEL TYPE
Swiveling caster; single wheel with 2 wheel pins
CASTER WHEEL POSITIONS
2 (Ground clearance / Empty storage position)
ISOLATION
8 shock absorbing mounts between cradle and trolley – To protect engine from shock, vibration and acceleration during transportation

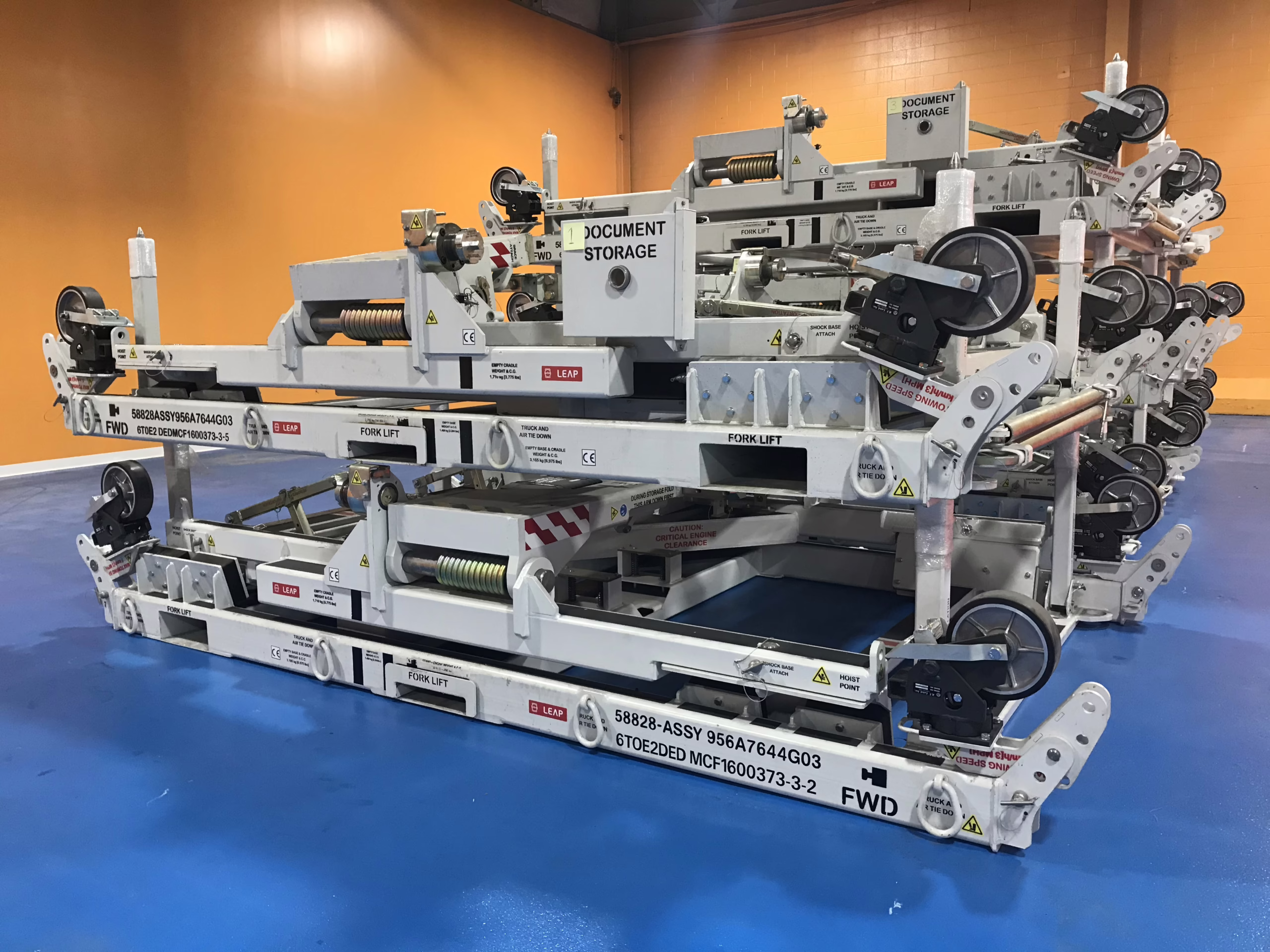

STACKABLE
Yes (Quantity: 3)
TOWING CAPABILITY
Forward and Aft

LEAP-1A ENGINE STAND STOCK & LEASE

LEAP-1A ENGINE STAND STOCK & LEASE

LOCATIONS	STATUS	REQUEST A QUOTE
Miami, USA	6 in stock	Request a quote
Cincinnati, USA	Assembly / In production	Request a quote
Toulouse, FRANCE	5 in stock	Request a quote
Dubai, MEA	3 in stock	Request a quote
Singapore, ASIA	1 in stock	Request a quote
Zhuhai, CHINA	Assembly / In production	Request a quote
