QUALIFIED BY CFM UNDER LICENSING AGREEMENT

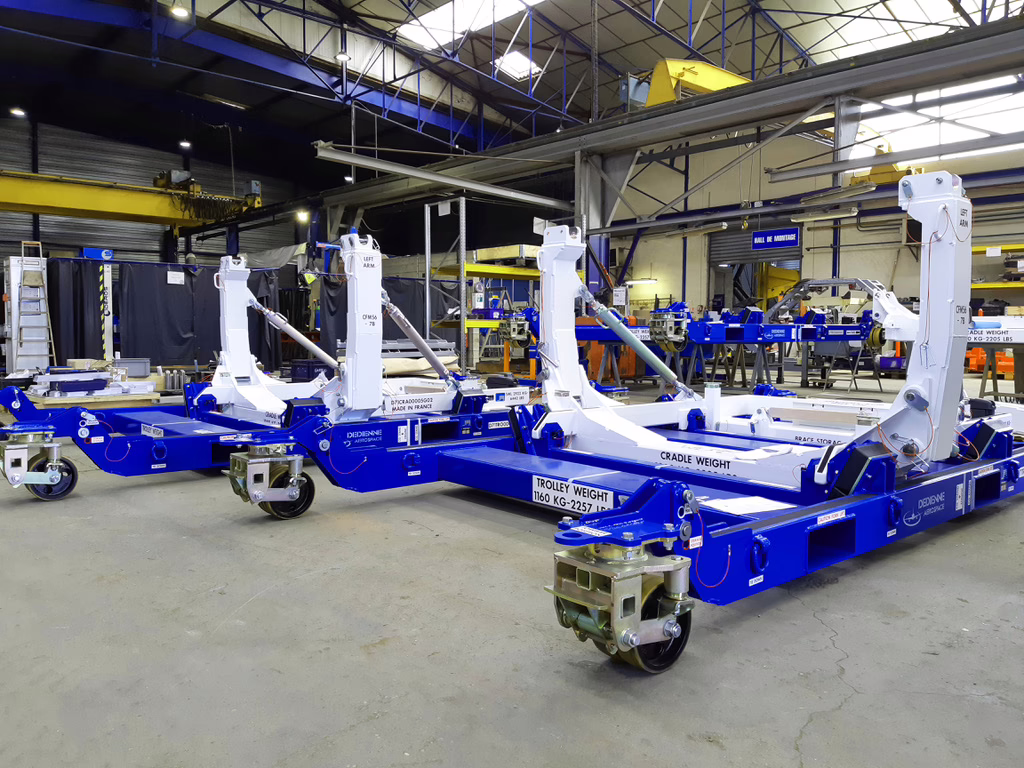

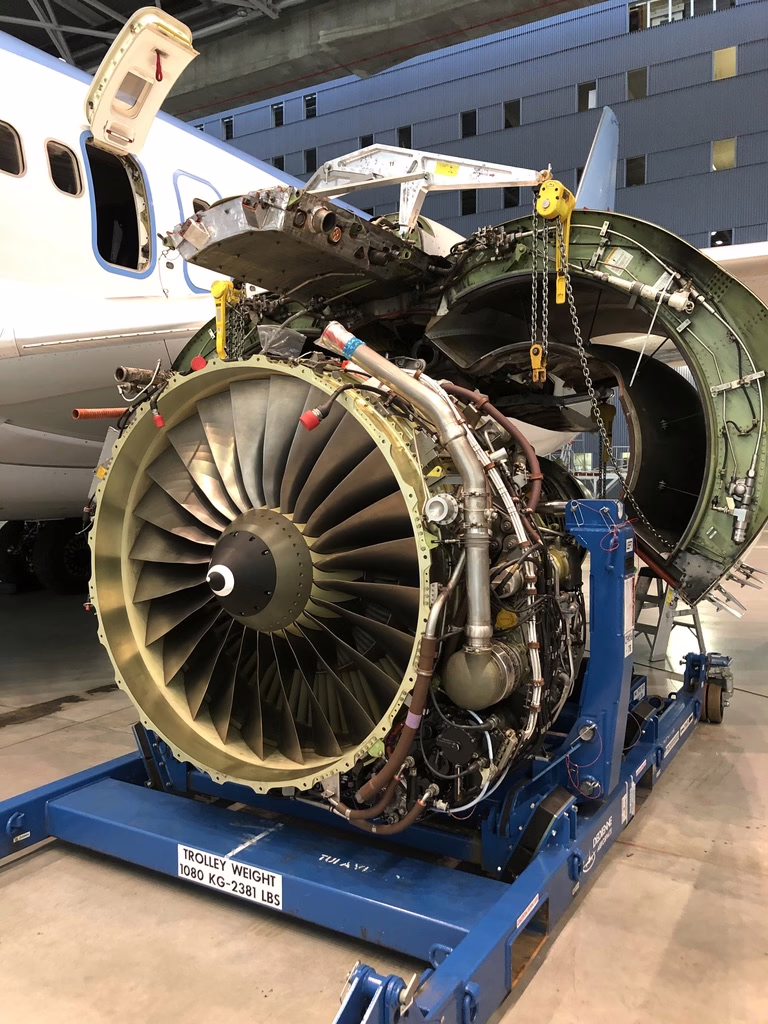

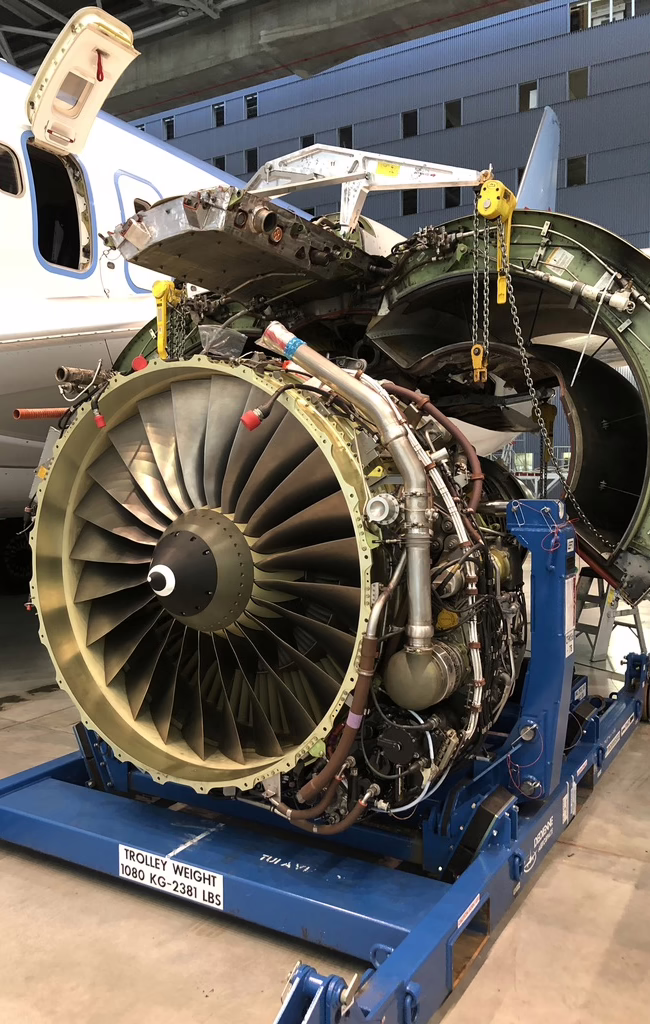

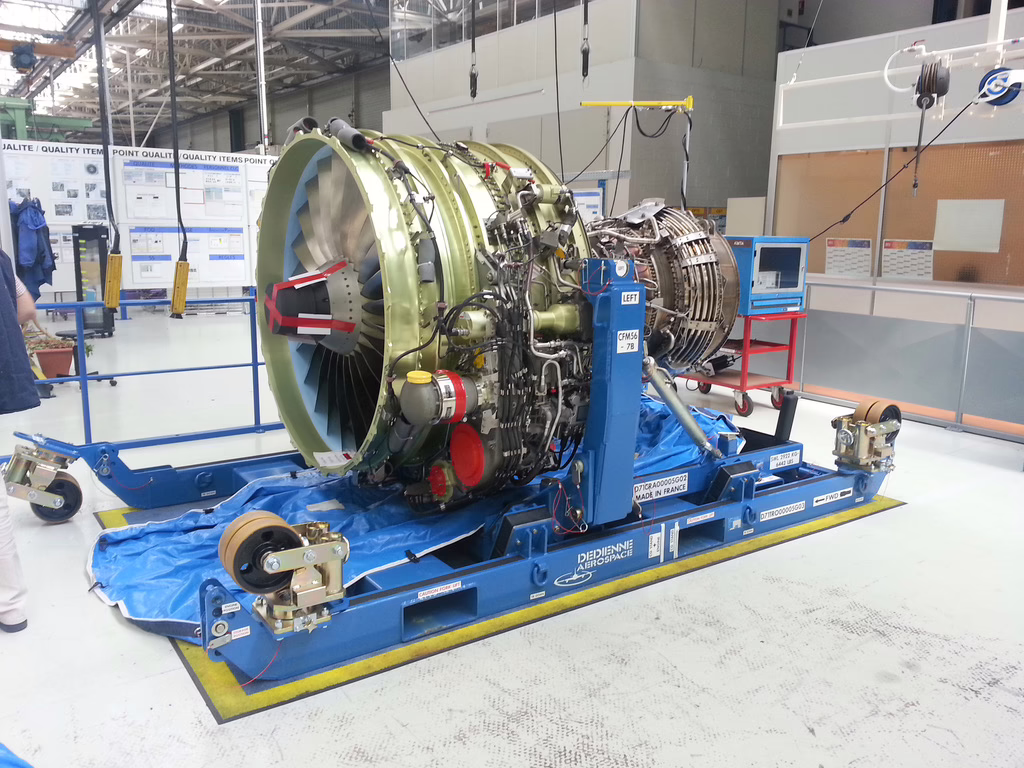

CFM56-7B ENGINE STAND

D71STA00005G02

Engine Stands > CFM56-7B

CFM56-7B ENGINE STAND

CFM56-7B ENGINE STAND

CFM56-7B ENGINE STAND SPECIFICATIONS

CFM56-7B ENGINE STAND SPECIFICATIONS

WEIGHT
2100 kg [4,629 lbs]
DIMENSIONS
4902 mm X 2464 mm X 1549 mm [193 in X 97 in X 6 1in]
USAGE
Transport, install and remove CFM56-7B engine
USED WITH
Protection cover engine (PN 856A3700G04)
INTERFACES WITH
Fan frame / Turbine rear frame
BOOTSTRAP POINTS
On engine

LIFTING SYSTEM
No | Vertical positions: 1
CASTER WHEEL TYPE
Swiveling caster; double wheel with 2 wheel pins
CASTER WHEEL POSITIONS
4 (Ground position / Engine position / Middle couse to change lift bar orientation / Empty stand caster position)
ISOLATION
8 shock absorbing mounts between cradle and trolley – To protect engine from shock, vibration and acceleration during transportation
STACKABLE
Yes (Quantity: 3)
TOWING CAPABILITY
Forward and Aft

CFM56-7B ENGINE STAND STOCK & LEASE

CFM56-7B ENGINE STAND STOCK & LEASE

LOCATIONS	STATUS	REQUEST A QUOTE
Miami, USA	1 in stock	Request a quote
Cincinnati, USA	Assembly / In production	Request a quote
Toulouse, FRANCE	Assembly / In production	Request a quote
Dubai, MEA	Assembly / In production	Request a quote
Singapore, ASIA	2 in stock	Request a quote
Zhuhai, CHINA	Assembly / In production	Request a quote
